Description

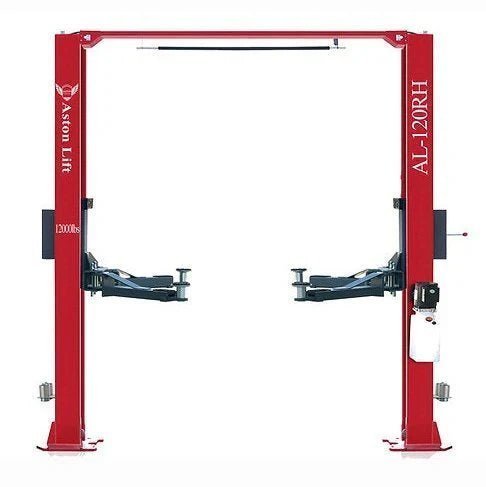

Aston 12000 lbs. 2 Post Car Lift Symmetric Overhead Single Point Lock Release
The Aston® 12000 lbs. 2 Post Car Lift with Single Point Lock Release is your reliable partner for effortless maintenance. Crafted with robust 0.24″ (6mm) steel, this lift ensures durability and stability.
With a lifting capacity of 12,000lbs, it effortlessly handles various . The Single Point Lock Release simplifies operation, while the padded bar and rubber door guards prioritize safety.
Upgrade your garage with the Aston® 12000 lbs. 2 Post Car Lift, your go-to solution for hassle-free maintenance.
Features
- Single Point Lock Release
- Plate Type Arm Restraints
- Column Thickness of Steel: 0.24″ (6mm)
- Carriage Thickness of Steel: 0.24″ (6mm)
- Arms Thickness of Steel: 0.24″ (6mm)
- Stronger than old-style Tubular-Type
- Lifting Capacity of 12,000lbs
- Padded “shut off” bar
- Rubber Door Guards
- Made In China.
- One Year Manufacturer Warranty (Parts Only, No Labor)
Specifications
| Model | AL-120RH |
| Capacity | 12000 lbs. |
| Max Lift Height | 75″ (1905mm) |
| Minimum Pad Height | 4.33″ (110mm) |
| Overall Height | 161.4″ |
| Overall Width | 128″ |
| Width Between Columns | 118″ |
| Drive thru Clearance | 111″ (2819mm) |
| Lifting Time | 40s (Adjustable) |
| Lowering Time | 30s (Adjustable) |
| Column Thickness of Steel | 0.31″ (8mm) |
| Carriage Thickness of Steel | 0.31″ (8mm) |
| Arms Thickness of Steel | 0.24″ (6mm) |
| Power | 3.0kw |
| Voltage | 220V 1ph |
| Noise | <70db |
| Net weight | 1940 lbs. (880kg) |
| Gross weight | 1940lbs. (880kg) |
| Packing size | 161″ x 21″ x 32″ (4089x533x813mm) |
| Pump Packing size | 36″x12″x14″ (900x300x350mm) |
