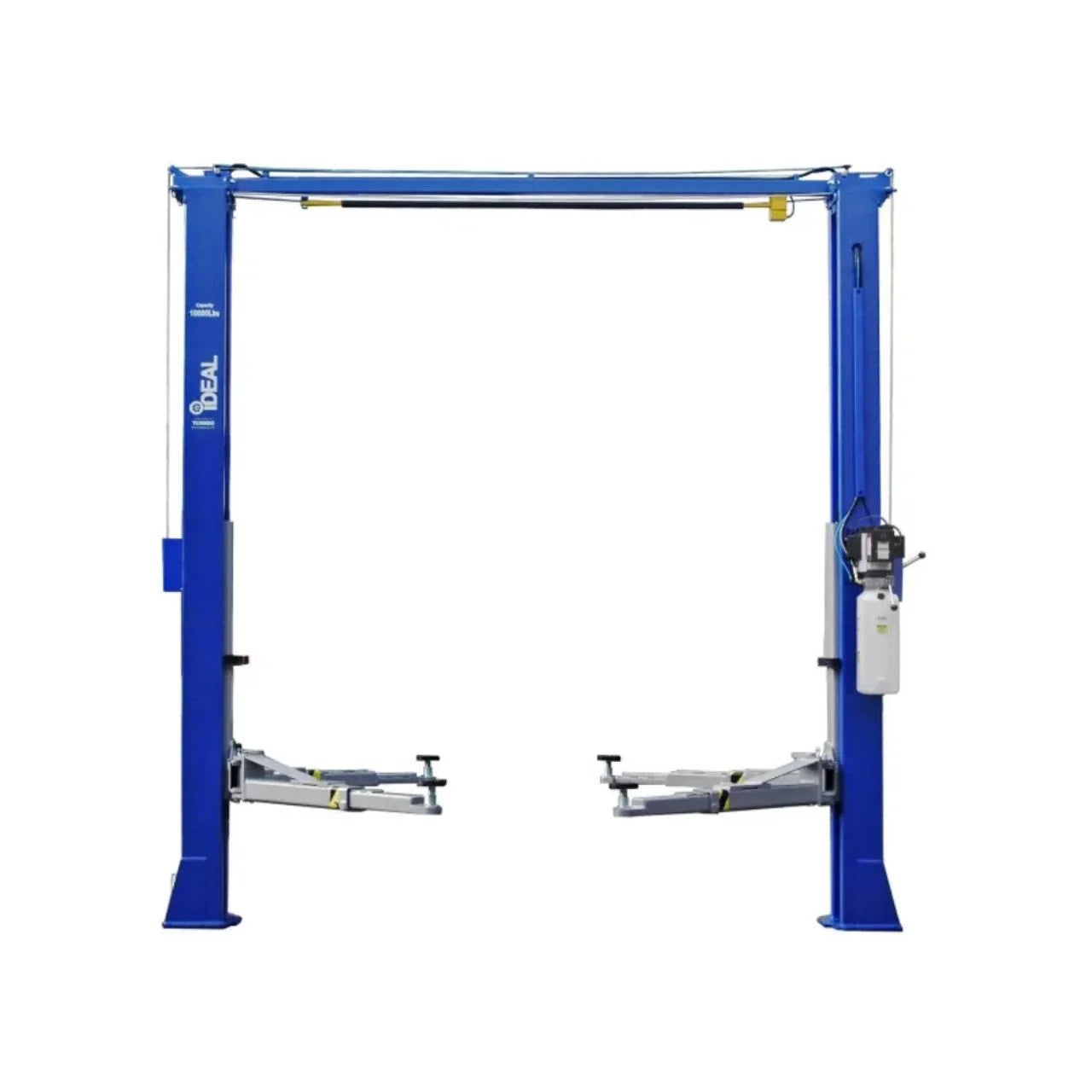

iDEAL TP10KAC-DX 10,000 Lb 2 Post Lift – Ali Certified Clear Floor BI-symmetrical
Get your 10000 lb 2 post lift for light duty with an ALI certification. This lift, with a Bi-symmetric design, features a unique design with 3 front 3-stage arms and 180 degree rotation. Allows a single point lock release, combining direct drive cylinders, makes this lift the perfect choice for workshops or garages, if you want to take this lift, and receive it where you want, remember that we are the best mechanic tools store.
Features
- 10000 pound 2 post car lift
- Ali Certified
- Bi-Symmetric Arm Design
- Rubber Door Guards
- 3 Stage Front Arms
- Direct Drive Pull Cylinders
- Single Point Lock Release
- Spin Up Low Profile Lift Pads
- Stackable Adapters Included
- External Hose Guards
- Duro Certified Power Unit
- Met, Ul, Csa Listed
Specifications
| Lift Model | TP10KAC-DX |
| Capacity | 10,000 lbs. |
| Height Overall | 144″ |
| Width Overall w/ Power Unit | 145-1/2″ |
| Max Lift Height | 71″ |
| Width Between Columns | 116″ |
| Min. Pad Height | 4″ |
| Drive Thru Clearance | 104″ |
| Lifting Speed | 50S |
| Asymmetric / Symmetric | Bi-Symmetric |
| Clear Floor / Floor Plate | Clear Floor |
| Short Arm Reach – min/max | 23″-45″ |
| Long Arm Reach – min/max | 41″-59″ |
| Narrow Bay Setting | NA |
| Max Load Per Arm | 2,500 lbs |
| Ship Weight | 1,705 lbs |
| Power | 220V – 20 AMP – 1 PH |
